Cascade control loop - Block Diagram Simplification

Home -> Solved Problems -> Process Control ->


Rules of Block Diagram Reduction

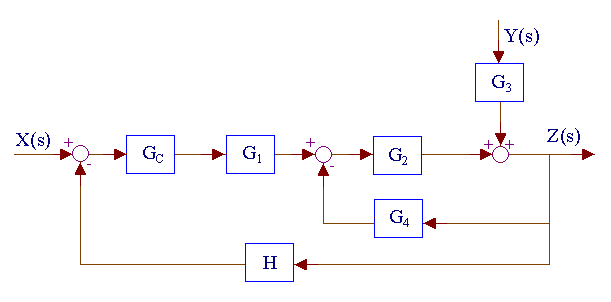

Step: 1

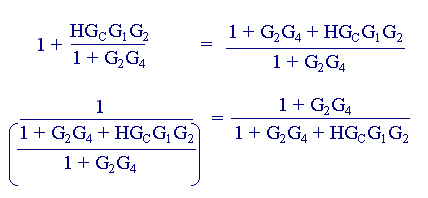

Step: 2

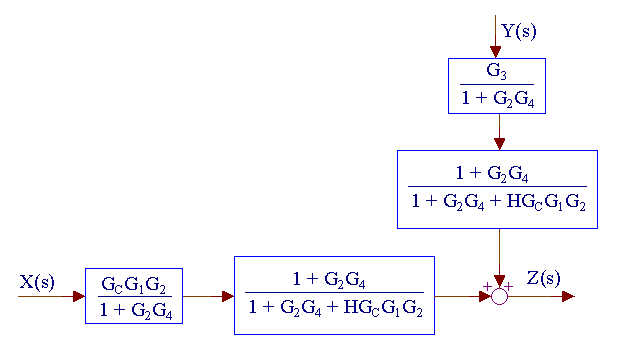

Step: 3

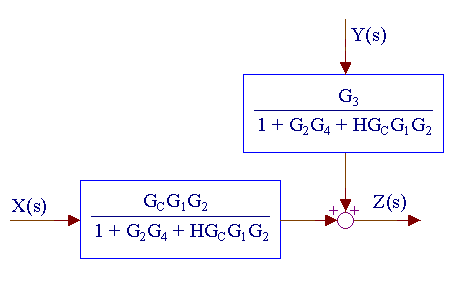

Step: 4


Questions
