Force in the direction of flow exerted by the fluid on the solid is called *drag*.

Figure shows a stationary smooth sphere of diameter D_{P} situated in a stream, whose velocity far away from the sphere is uµ to the right. Except at very low velocities, when the flow is entirely laminar, the wake immediately downstream from the sphere is unstable, and turbulent vortices will constantly be shed from various locations round the sphere. Because of turbulence, the pressure on the downstream side of the sphere will never fully recovered to that on the upstream side, and there will be a *form drag* to the right of the sphere. (For purely laminar flow, the pressure recovery is complete, and the form drag is zero.)

In addition, because of the velocity gradients that exist near the sphere, there will also be a net *viscous drag* (also called as *wall drag*) to the right (In potential flow there is no wall drag). The sum of these two effects is known as the (total) drag force, F_{D}. A similar drag occurs for spheres and other objects moving through an otherwise stationary fluid - it is the relative velocity that counts.

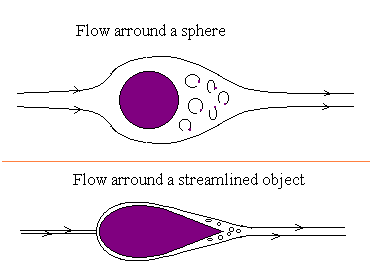

Form drag can be minimized by forcing separations toward the rear of the body. This is accomplished by stream lining. (see figure)

The experimental results of the drag on a smooth sphere may be correlated in terms of two dimensionless groups - the *drag coefficient* C_{D} and *particles Reynolds number* NRe_{P}:

NRe_{P} = ru_{µ} D_{P}/m

In which A_{P} = pD_{P}^{2}/4 is the *projected area* of the sphere in the direction of motion, and r and m are the properties of the fluid.

There are at least three distinct regions, for flow around a sphere.

- For NRe
_{P} less than 1 (laminar), C_{D }vs. NRe_{P} is a straight line, and is given by the relation
C_{D} = 24/NRe_{P} (given by Stoke's law, F_{D }= 3pm u_{µ} D_{P})

- 1 < NRe
_{P} < 1000 , C_{D} = 18 NRe_{P}^{-0.6} (transition)
- 1000 < NRe
_{P} < 2 x 10^{5} , C_{D} = 0.44 (turbulent)

For cylinders and disks, for NRe_{P }up to 1, C_{D} = 24/NRe_{ }and in other regimes C_{D }varies with NRe_{P} in the manner as shown in figure. Here the flow orientation is much important. Drag coefficients varies with orientation of solid to the flow direction.

In all these curves the transition from laminar to turbulent flow is more gradual than that for pipe flow (f vs. NRe curve).
